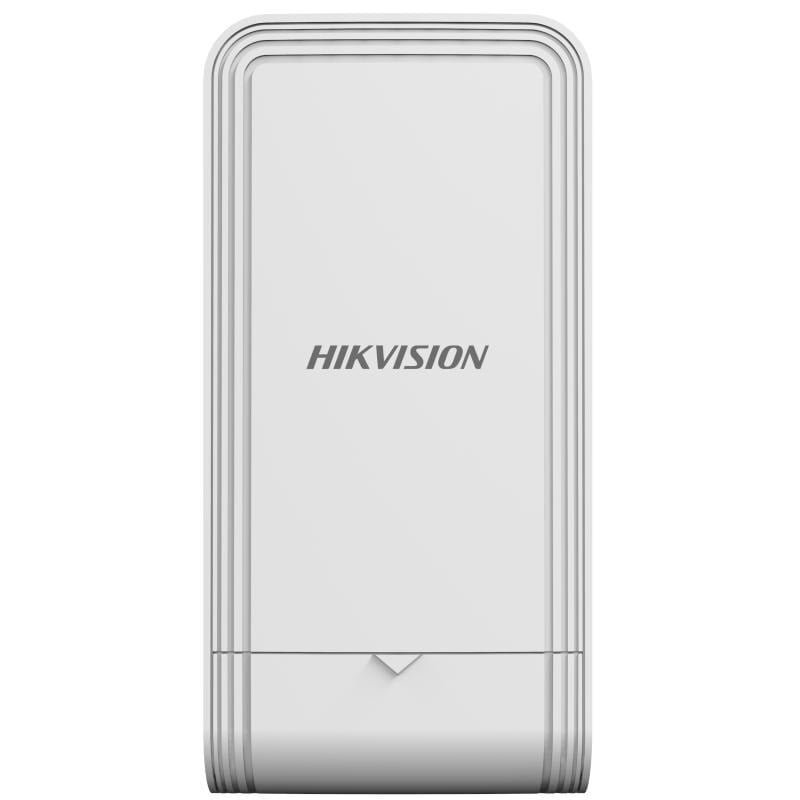

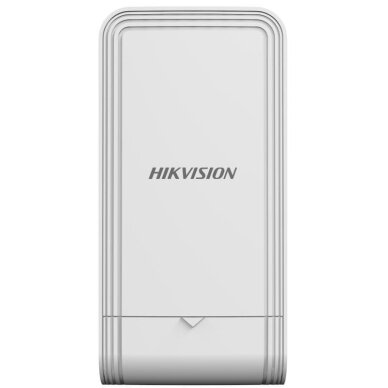

Belaidis CPE Hikvision DS-3WF03C-5AC/O(V3) (5GHz, 867Mbps, 15km)
9286 € su PVMŠią prekę turime sandėlyje.Lizingo skaičiuoklės- esto
Visi LAN prievadai – gigabitiniai Palaikoma TDMA technologija Greitas sujungimas per DIP jungiklį Vizualizuotas topologijos valdymas Belaidžio perdavimo atstumas iki 15 kmPrekės ženklasHikvision-
- Patvirtinimai
- Cheminių komponentų sertifikavimasCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015)
- RadioEN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247
- SaugumasUL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017)
- Bendrieji duomenys
- Bendras svoris0.807 kg (1.779 lb)
- Installation ModePole mounting
- Grynas svoris0.307 kg (0.677 lb)
- Pakuotės Matmenys (P × A × G)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
- PakuotėjeWireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 1000 MB PoE injector × 1, binding tape × 2, quick start guide × 1
- Packing MethodSingle unit packing
- Energijos suvartojimas3 W for typical (1-ch 2MP IPC), Max. 7.5 W
- Produkto matmenys (P × A × G)92 mm × 187 mm × 58 mm (3.62" × 7.36" × 2.28")
- Laikymo drėgnumas5% to 95% (no condensation)
- Laikymo temperatūra-40°C to 85°C (-40°F to 185°F)
- Darbinė drėgmė5% to 95% (no condensation)
- Darbinė temperatūra-30°C to 70°C (-22°F to 158°F)
- Hardware Parameter
- LED indikatoriusPower indicator, LAN indicator, signal intensity indicator
- Port Numbers2 × Gigabit RJ45 ports
- Energijos šaltinis12 VDC/1 A Passive PoE; 12 VDC, 1 A
- PerkrovimasHardware resetting button
- Tinklo parametrai
- Networking ModePoint to point: Support up to 4-ch IPC (2MP) in Max. 15 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 5 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 5 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection
- Programinės įrangos funkcijos
- Application FunctionTDMA, DFS, TPC,IFM,IPM
- Channel SelectionAuto/manual selection
- Kanalo plotis20/40/80 MHz
- Management MethodWeb, HCP
- ProtokolaiNTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging)
- Security MechanismWireless network name hidden
- Security ModeWPA2-PSK
- Sistemos žurnalasSyslog, control center information
- UpgradeWeb, iVMS-4200
- Belaidžio ryšio parametrai
- Antenna AngleBeamwidth [3dB] (35°± 5°)
- Antenos stiprinimas12 dBi
- Max. Transmission Rate of Air Interface≤ 867 Mbps
- Receiving Sensitivity-60 ± 2 dBm@AC80 -MCS9; -86 ± 2 dBm@AC80 -MCS0
- Perdavimo galia27 dBm (Note: Transmitting power may vary with local regulations.)
- Belaidžio ryšio standartasIEEE 802.11/a/n/ac
- Working Frequency Band5150 to 5250 MHz5250 to 5350 MHz (DFS)5470 to 5725 MHz (DFS)5725 to 5850 MHz(Note: Available channel may vary with local regulations.)
-
