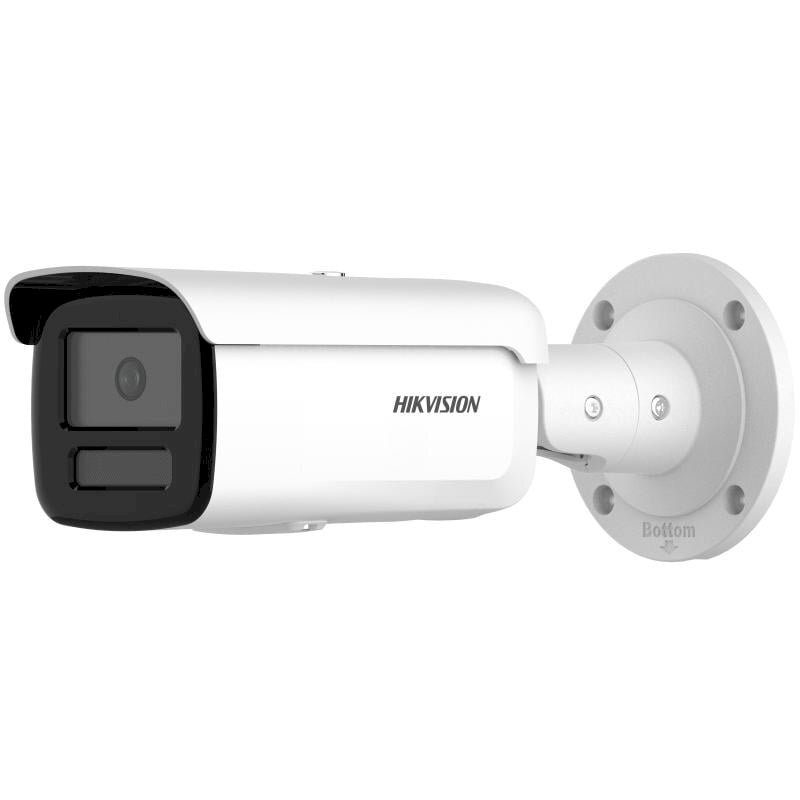

Hikvision bullet DS-2CD2T86G2H-4I F4 (balta, 8 MP, 80 m. IR, AcuSense)

  • Hikvision bullet DS-2CD2T86G2H-4I F4 (balta, 8 MP, 80 m. IR, AcuSense)

    Kaina 41440  su PVM
    Šią prekę turime sandėlyje.
    Į krepšelį
    MP (MegaPixel): 8 MP Objektyvas: 4mm, horizontalus FOV: 90°Technologija: AcuSenseIntegruotas mikrofonas: NeNaktinis pašvietimas: 80 m. IRVieta microSD talpai: Taip, 512GBDarbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67Vaizdo suspaudimas: H.265+WiFi: NeLaikiklis/bazė (papildomai): DS-1280ZJ-SLauko/vidaus: Lauko
    • Kamera
    • Sensorius1/1.8" Progressive Scan CMOS
    • Maks. rezoliucija3840 × 2160
    • Min. apšvietimasColor: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
    • Užrakto greitis1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Kampo keitimasPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
    • Lęšis
    • Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
    • Focal Length & FOV

      2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°

      4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°

    • Lęšio montavimasM16
    • Rainelės tipasFixed
    • DiafragamaF1.0
    • Ryškumo gylis

      2.8 mm: 3.3 m to ∞

      4 mm: 3.8 m to ∞

    • DORI
    • DORI

      2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

      4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

    • Apšvietimas
    • Papildomo apšviešimo tipasIR
    • Papildomo apšvietimo diapazonas2I: up to 60 m; 4I: up to 80 m
    • Išmanus papildomas apšvietimasYes
    • IR bangos ilgis850 nm
    • Vaizdas
    • Pagrindinis srautas

      50 Hz:

      25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz:

      24 fps (3840 × 2160)

      30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

    • Antrinis srautas

      50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

    • Trečias srautas

      50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      *Third stream is supported under certain settings.

    • Vaizdo suspaudimas

      Main stream: H.265/H.264/H.264+/H.265+,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264,

      *Third stream is supported under certain settings.

    • Vaizdo bitų greitis32 Kbps to 16 Mbps
    • H.264 tipasBaseline Profile,Main Profile,High Profile
    • H.265 tipasMain Profile
    • Bitų greičio kontrolėCBR,VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Internetas
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
    • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
    • Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
    • KlientasiVMS-4200,Hik-Connect,Hik-Central
    • Naršyklė

      Plug-in required live view: IE 10, IE 11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Nuotrauka
    • Nuotraukos parametrų keitiklisYes
    • Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Diena/Naktis režimasDay,Night,Auto,Schedule
    • Nuotraukų pagražinimasBLC,HLC,3D DNR
    • SNR≥ 52 dB
    • Wide Dynamic Range (WDR)120 dB
    • Privatumo kaukė4 programmable polygon privacy masks
    • Sąsaja
    • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Vidinė atmintis

      Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

    • Perkrovimo mygtukasYes
    • Funkcijos
    • Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
    • Išmaniosios funkcijosScene change detection
    • Išmaniosios funkcijos
    • Veido atpažinimasYes
    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

    • Pagrindinis
    • Sistemos parametrai

      12 VDC ± 25%, 0.95 A, max. 11.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

      PoE: IEEE 802.3af, Class 3, max. 12.5 W

    • MedžiagaFront cover: metal, body: metal, bracket: metal
    • Dydis286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
    • Pakuotės dydis386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
    • SvorisApprox. 1180 g (2.6 lb.)
    • Svoris su įpakavimuApprox. 1829 g (4.3 lb.)
    • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Pagrindinės funkcijosHeartbeat,mirror,password reset via email,pixel counter,anti-banding
    • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • Patvirtinimai
    • EMC

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      IC: ICES-003: Issue 7,

      RCM: AS/NZS CISPR 32: 2015

    • Saugumas

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017

    • Aplinkosauga

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • ApsaugaIP67: IEC 60529-2013
