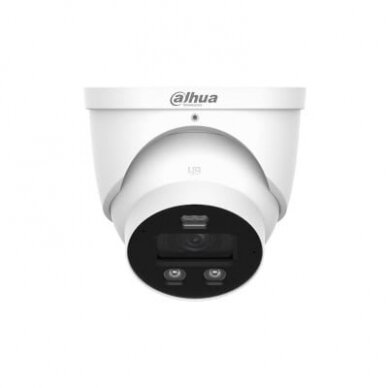

IP kamera Dahua IPC-HDW3849H-AS-PV-0280B-PRO (Balta, 8MP, 2.8mm 109°, IR LED 30m, IP67)
IP kamera Dahua IPC-HDW3849H-AS-PV-0280B-PRO (Balta, 8MP, 2.8mm 109°, IR LED 30m, IP67)
Kaina 42966 € su PVMŠią prekę turime sandėlyje.Tipas: IP kamera Modelis: IPC-HDW3849H-AS-PV-0280B-PRO Prekės ženklas: Dahua Serija: WizColor Vaizdo jutiklis: 8 MP Objektyvas: 2.8 mm (109°) Apšvietimas: IR LED, iki 30 m Garsas: Integruotas mikrofonas Vaizdo technologijos: 120 dB WDR, 3D DNR, HLC, BLC Pažangios funkcijos: Perimetro apsauga, SMD 4.0, defog PoE Atmintis: SD kortelė iki 256 GB Atsparumas: IP67-
- Pagrindinis
- Sensorius1/1.8" CMOS
- Maks. rezoliucija3840 (H) × 2160 (V)
- ROM256 MB
- RAM2 G
- Skenavimo sistemaProgressive
- Elektroninis užrakto greitisAuto/Manual 1/3 s–1/100,000 s
- Min. apšvietimas0.0008 Lux@F1.0 (Color, 30IRE), 0.0004 Lux@F1.0 (B/W, 30IRE), 0 lux (Illuminator on)
- S/N santykis>56 dB
- Apšvietimo atstumasUp to 30 m (98.43 ft) (IR), Up to 30 m (98.43 ft) (Warm light)
- Apšvietimo valdymasAuto; Manual
- Apšvietimo skaičius2 (Multi-core (IR + warm) light)
- Kampo keitimasPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Lęšio tipasFixed-focal
- Lęšio montavimasM16
- FOV2.8 mm; 3.6 mm
- Maks. diafragmaF1.0
- FOV2.8 mm: H: 109°; V: 59°; D: 131°, 3.6 mm: H: 93°; V: 50°; D: 111°
- Diafragmos valdymasFixed
- Artimiausias fokusavimas2.8 mm: 3.2 m (10.50 ft), 3.6 mm: 4.4 m (14.44 ft)
- DORI Distance (2.8 mm)Detect: 82.0 m (269.03 ft), Observe: 32.8 m (107.64 ft), Recognize: 16.4 m (53.81 ft), Identify: 8.2 m (26.90 ft)
- DORI Distance (3.6 mm)Detect: 100.0 m (328.08 ft), Observe: 40.0 m (131.23 ft), Recognize: 20.0 m (65.62 ft), Identify: 10.0 m (32.81 ft)
- IVS (Perimetro apsauga)Intrusion, tripwire (supports classification and accurate detection of vehicles and humans)
- SMDSMD 4.0
- AcuPickDeep learning-based target matching and search for people and motor vehicles
- AI SSADeep learning algorithms adjust image parameters based on conditions
- Išmanioji paieškaWorks with Smart NVR for refined intelligent search and event extraction
- Vaizdo suspaudimasH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
- Išmanusis kodekasSmart H.265+; Smart H.264+
- AI kodavimasAI H.265 (≥25% compression rate), AI H.264 (≥25% compression rate)
- Vaizdo kadrų dažnisMain stream: 3840 × 2160@(1–25/30 fps), Sub stream: 1920 × 1080@(1–25/30 fps), Third stream: 1920 × 1080@(1–25/30 fps)
- Srauto pajėgumas3 streams
- Rezoliucija8M (3840 × 2160), 6M (3200 × 1800), 5M (3072 × 1728), 4M (2688 × 1520/2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
- Bitų greičio kontrolėCBR/VBR/ABR
- Vaizdo bitų greitisH.264: 3 kbps–16384 kbps, H.265: 3 kbps–16384 kbps
- Dienos/nakties režimasAuto(ICR)/Color/B/W
- BLCYes
- HLCYes
- WDR120 dB
- Scene Self-adaptation (SSA)Yes
- Baltos spalvos balansasAuto; Natural; Street lamp; Outdoor; Manual; Regional custom
- Stiprinimo valdymasAuto
- Triukšmo mažinimas3D NR
- Judesių aptikimasOFF/ON (4 areas, rectangular)
- Intereso sritisYes (4 areas)
- Išmanusis apšvietimasYes
- Smart Dual LightYes
- Rūko šalinimasYes
- Vaizdo rotacija0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)
- VeidrodisYes
- Privatumo maskavimas8 areas
- LDCYes
- Integruotas mikrofonasYes, dual Mic
- Įmontuotas garsiakalbisYes, built-in speaker
- Garso suspaudimasPCM; G.711a; G.711Mu; G.726; G.723
- Pavojaus įvykisNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
- Tinklo prievadasRJ-45 (10/100 Base-T)
- SDK ir APIYes
- ProtokolaiIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
- SuderinamumasONVIF (Profile S; Profile G; Profile T); CGI
- Naudotojas/prievadas20 (Total bandwidth: 64 M)
- SaugyklaFTP; SFTP; Micro SD card (max. 512 GB); NAS
- NaršyklėIE11; Chrome; Firefox
- Valdymo programinė įrangaSmart PSS Lite; DSS; DMSS; DoLynk Care
- Mobilioji programaiOS; Android
- Kibernetinis saugumasVideo encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
- SertifikataiCE-LVD: EN 62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- Garso įvestis1 channel (RCA port)
- Garso išvestis1 channel (RCA port)
- Signalizacijos įvestis1 channel in: wet contact, 5 mA 3–5 VDC
- Signalizacijos išvestis1 channel out: wet contact, 300 mA 12 VDC
- Maitinimas12 VDC; PoE
- Dual Power BackupSupports power redundancy when using both adapter and PoE, but will not restart when one is disconnected
- Energijos sunaudojimasBasic: 4.1 W (12 VDC); 6 W (PoE), Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10 W (PoE)
- Darbo sąlygos (temperatūra)–40 °C to +60 °C (–40 °F to +140 °F)
- Darbo sąlygos (drėgmė)≤95%
- ApsaugaIP67
- Korpuso medžiagasMetal
- Produkto dydisΦ122.0 mm × 116.1 mm (4.80" × Φ4.57")
- Svoris be įpakavimo0.8 kg (1.76 lb)
- Svoris su įpakavimo1.0 kg (2.20 lb)
-
