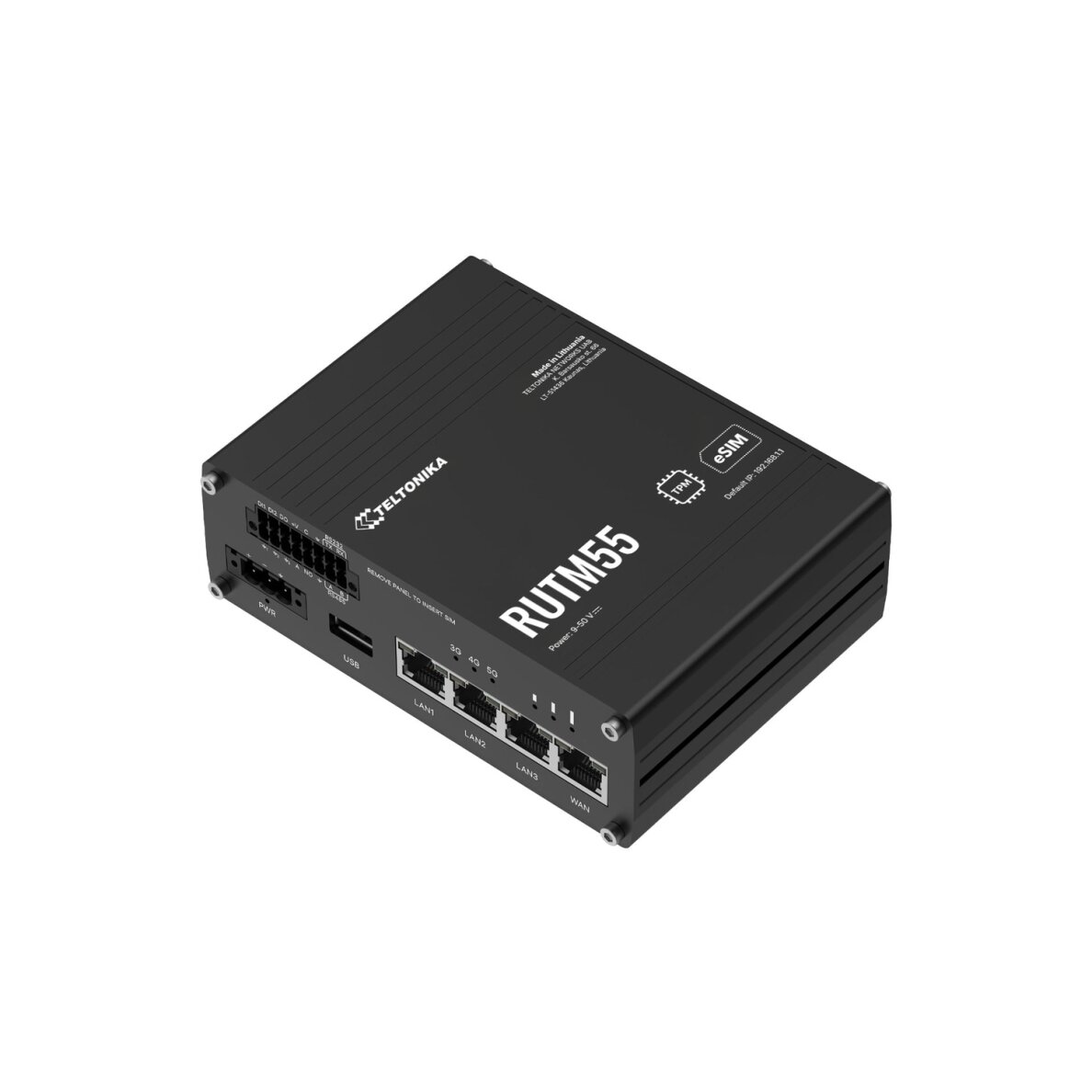

Maršrutizatorius Teltonika RUTM55 (5G, 1xWAN, 3xLAN, 2 SIM, Wi-Fi)
Kaina 66223 € su PVMŠią prekę turime sandėlyje.Lizingo skaičiuoklės- esto
Tipas: Maršrutizatorius Prekės ženklas: Teltonika Modelis: RUTM55 Ryšys: 5G SIM: eSIM Prievadai: 1 x WAN, 3 x LAN Greitis: 1 Gbps Maitinimas: 9–50 V DC Darbinė temperatūra: -40 °C iki 75 °C-
- Bendra informacija
- Mobilus modulis5G Sub-6 GHz SA/NSA, up to 3.4 Gbps DL and 550 Mbps UL; 4G LTE Cat 19 up to 1.6 Gbps DL, Cat 18 up to 200 Mbps UL
- 3GPP leidimasRelease 16
- eSIMConsumer eSIM, up to 7 profiles, profile download/removal, no data plans included
- SIM switchDual SIM and eSIM with auto-switch for weak signal, data/SMS limits, roaming, no network, denied network, connection fail and SIM idle protection
- StatusasIMSI, ICCID, operator, connection state, network type, CA, bandwidth, bands, signal metrics, data usage and cell info
- SMSSMS management, Email↔SMS, HTTP, SMPP, scheduled SMS, autoreply
- USSDSend and receive USSD messages
- Blokuojamų/Leidžiamų sąrašasOperator block/allow list by country or operator
- Keli PDNMultiple PDNs for different network access and services
- Dažnių juostų valdymasBand lock and used band status
- SIM budėjimo apsaugaUnused SIM remains idle until switched to
- SIM PIN managementSet/change/disable SIM PIN
- APNAuto APN
- TiltasDirect bridge between mobile ISP and LAN device
- PerleidimasAssign mobile WAN IP to LAN device
- Rėminis maršrutizavimasIP network support behind 5G UE
- Bevielis ryšys802.11b/g/n/ac Wave 2 (Wi-Fi 5), dual band, MU-MIMO, up to 867 Mbps
- Wi-Fi saugumasWPA2/WPA3, EAP, AES-CCMP, TKIP, PMF, client separation, certificates
- SSID/ESSIDSSID stealth and MAC-based access control
- Wi-Fi naudotojaiUp to 150 simultaneous connections
- Belaidžio ryšio ypatybėsMesh (802.11s), fast roaming (802.11r), 802.11k/v support
- Belaidžio ryšio MAC filtrasAllowlist and blocklist
- Wireless QR codeQR login for automatic Wi-Fi access
- WAN1 x 10/100/1000 Mbps Ethernet
- LAN3 x 10/100/1000 Mbps Ethernet
- MaršrutizavimasStatic and dynamic routing, policy-based routing
- Tinklo protokolaiTCP, UDP, IPv4/IPv6, HTTP(S), FTP, MQTT, SNMP, SSH, DHCP, WOL and others
- Ugnies sienaPort forwarding, traffic rules, NAT, DMZ, TTL control
- HotspotCaptive portal, RADIUS, SMS auth, SSO, themes and user management
- Tinklo atsarginisFailover via Wi-Fi WAN, mobile, VRRP or wired
- Krovio balansavimasMulti-WAN traffic balancing
- Sauga802.1x, certificates, RADIUS, TACACS+, firewall, VLAN, web filter, attack prevention
- TPMTPM 2.0 identification and authentication module
- VPNOpenVPN, IPsec, GRE, PPTP/L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
- Industrial protocolsOPC UA, MODBUS, MQTT Gateway, DNP3, DLMS/COSEM
- ValdymasWeb UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
- IoT platformsThingWorx, Cumulocity, Azure IoT Hub
- CPUMediaTek Dual-Core 880 MHz, MIPS1004Kc
- RAM256 MB DDR3
- Flash storage16 MB serial NOR, 256 MB serial NAND
- Operacinė sistemaRutOS (OpenWrt-based Linux)
- GNSSGPS, GLONASS, BeiDou, Galileo, QZSS
- SerialRS232 and RS485 terminal block
- USBUSB 2.0 Type-A for external devices
- įvestis1 x dry input, 1 x galvanically isolated input, 1 x analog input
- išvestis1 x isolated open collector output, 1 x SPST relay output
- Maitinimo jungtis3-pin terminal block
- Įėjimo įtampa9–50 V DC with reverse polarity and surge protection
- PoEPassive PoE over Port 1, 9–50 V DC, not 802.3af/at/bt
- Energijos sąnaudos<8.5 W idle, <14.5 W max
- Ethernet prievadai4 x RJ45 10/100/1000 Mbps
- SIM lizdai2 x Mini SIM (2FF)
- Antena4 x SMA mobile, 2 x RP-SMA Wi-Fi, 1 x SMA GNSS
- Matmenys132 x 44.2 x 95 mm
- Svoris430 g
- KorpusasAnodized aluminium housing and panels
- MontavimasDIN rail, wall, flat surface (kit required)
- Darbinė temperatūra-40°C to +75°C
- Darbinė drėgmė10% to 90% non-condensing
- Apsauga nuo įėjimo (IP apsaugos klasė)IP30
- SertifikataiCE, UKCA, CB, RCM, EAC, UCRF, WEEE
-
