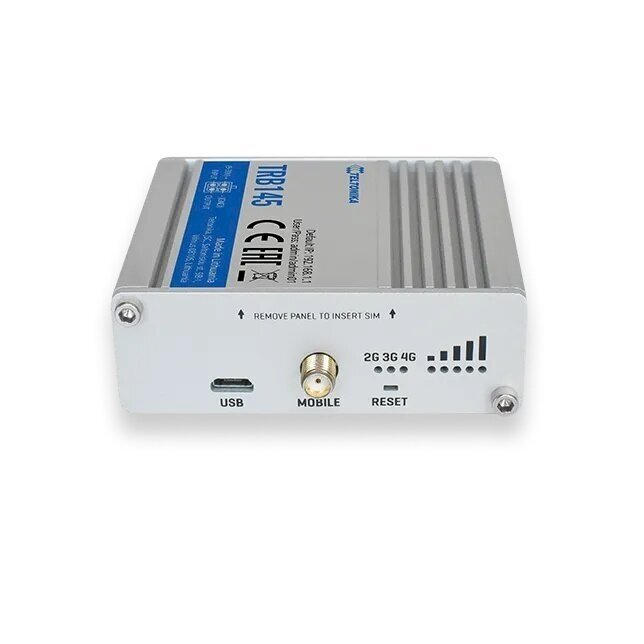

TELTONIKA pramoninė tinklo sąsaja LTE TRB145 - 4GLTE

  • TELTONIKA pramoninė tinklo sąsaja LTE TRB145 - 4GLTE

    Kaina 13846  su PVM
    Šią prekę turime sandėlyje.
    Į krepšelį
    Sujungimas: 4G/LTE (Cat 4), 3G, 2GAliuminis korpusasĮtampos diapozonas: 9-30V
  • Mobilus ryšys
    Mobilus modulis 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
    Statusas Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
    SMS/skambučiai SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
    USSD Supports sending and reading Unstructured Supplementary Service Data messages
    Baltasis/juodasis sąrašai Operator black/white list
    Juostų valdymas Band lock, Used band status display
    APN Auto APN
    Tiltas Direct connection (bridge) between mobile ISP and device on LAN
    Pralaidumas Gateway assigns its mobile WAN IP address to another device on LAN
    Multiple PDN Possibility to use different PDNs for multiple network access and services
    Tinklas
    Perdavimas Static routing
    Tinklo protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT
    Sujungimo valdymas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
    Ugniasienė Port forwards, traffic rules, custom rules
    DHCP Static and dynamic IP allocation
    QoS / SQM (planuota) Traffic priority queuing by source/destination, service, protocol or port
    DDNS Supported >25 service providers, others can be configured manually
    SSHFS Possibility to mount remote file system via SSH protocol
    Galia
    Sujungimas 4 pin industrial DC power socket
    Įvesties įtampos diapozonas 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max
    Galios suvartojimas < 5 W
    Fizinės sąsajos
    RS485 1 x 6 pin terminal block for 2-wire or 4 wire interface
    I/Os 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB145*2****)
    USB 1 x Virtual network interface via micro USB
    LED būsenos indikatoriai 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
    SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
    Galia 4 pin power connector with 2 x configurable Digital Inputs/Outputs (I/O not available in TRB145*2****)
    Antena 1 x SMA for LTE
    Restartavimas Reboot/User default reset/Factory reset button
    Fizinė specifikacija
    Korpuso medžiaga Aluminum housing
    Matmenys (W x H x D) 74.5 x 25 x 64.4 mm
    Svoris 130 g
    Montavimo sąlygos Bottom and sideways DIN rail, Flat surface
    Aplinkos įtaka
    Darbinė temperatūra -40 °C to 75 °C
    Atsparumas drėgmei veikimo metu 10 % to 90 % non-condensing
    Apsauga IP30
    Saugumas
    Standartai IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
    EN 50385:2017
    EN 62232:2017
