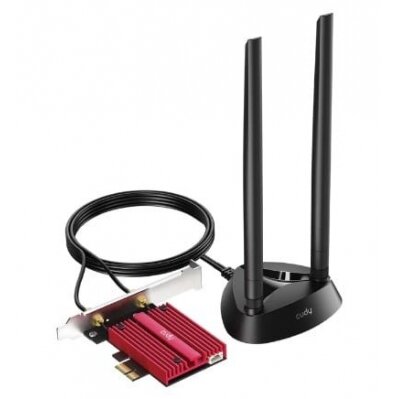

WiFi ir bluetooth PCI-E plokštė CUDY WE4000
WiFi ir bluetooth PCI-E plokštė CUDY WE4000
Tipas: WiFi ir Bluetooth PCI-E plokštė Modelis: CUDY WE4000 WiFi greitis: 2.4Gbps + 2.4Gbps + 574Mbps Bluetooth versija: 5.3 Chipsetas: Intel AX210 MIMO technologija: 2×2 Antenos: 2 Darbinė temperatūra: 0–70°C-
- Pagrindinis
- CPU mikroschemaIntel AX210
- Wireless 6 GHz Wi-Fi Speed2402 Mbps
- 5 GHz Wi-Fi Speed2402 Mbps
- 2.4 GHz Wi-Fi Speed574 Mbps
- 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
- 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
- „Wi-Fi“ antenos2× Detachable Antennas on a Magnetic Base
- Nuimamos „Wi-Fi“ antenos jungtisRP-SMA Female
- Reliability EnvironmentAmbient Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~158 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉), Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 95% non-condensing
- Requirements Hardware RequirementRequires a PCI-E 1x or higher standard slot on the motherboard for powering and the WiFi function, Requires a USB 9-PIN slot on the motherboard for the Bluetooth function
- Compatible OSWindows 10/11 64-Bit
- Driver InstallationManual driver installation for Windows. Driver available in the Download Center.
- SertifikataiFCC, CE
- Mechanical DimensionDevice Body: 120.8×98.4×21.5 mm (4.76×3.87×0.85 inches), Magnetic Antenna Base: Φ94.5×221.5 mm (Φ3.72×8.72 inches)
- Produkto svoris100 g (3.53 oz.)
- Package ContentWE4000, Detachable Antennas, Magnetic Antennas Base, Bluetooth to 9-PIN USB Cable, Low-Profile Bracket, Installation Guide
- Ordering Information Retail Package Weight400 g (14.11 oz.)
- Retail Package Dimension237×185×35.5 mm (9.33×7.28×1.4 inches)
- Carton Net Weight12.0 kg (26.46 lbs)
- Carton Gross Weight13.2 kg (29.1 lbs)
- Units per Carton30
- Carton Dimension59.5×38.4×25.5 cm (23.43×15.12×10.04 inches)
-
